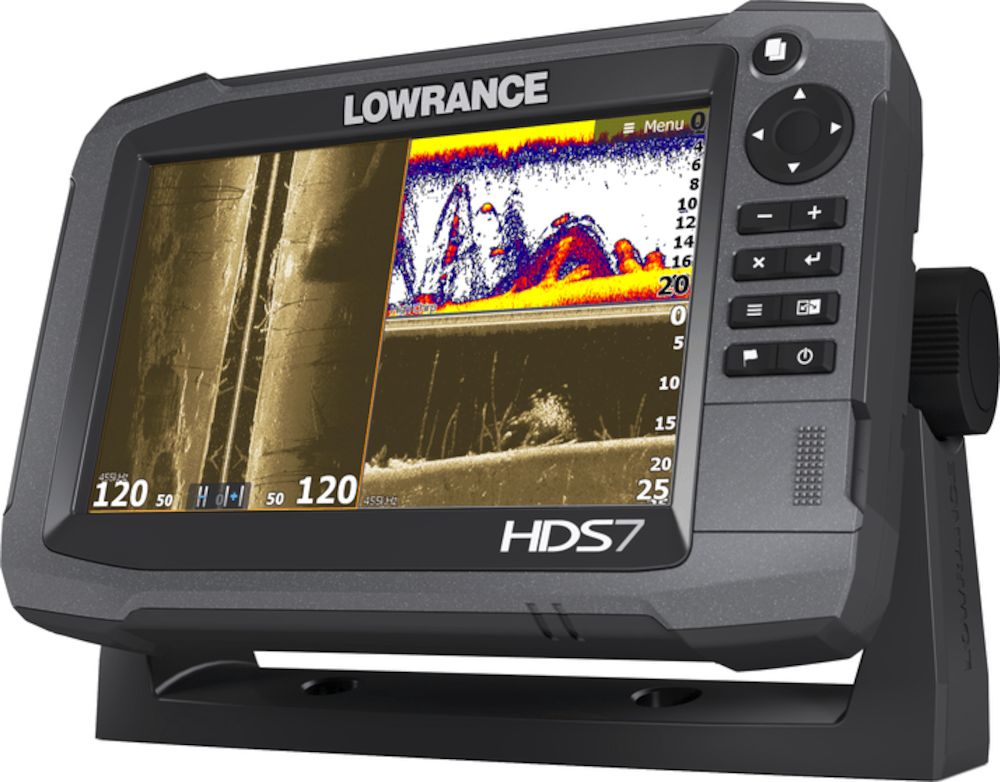

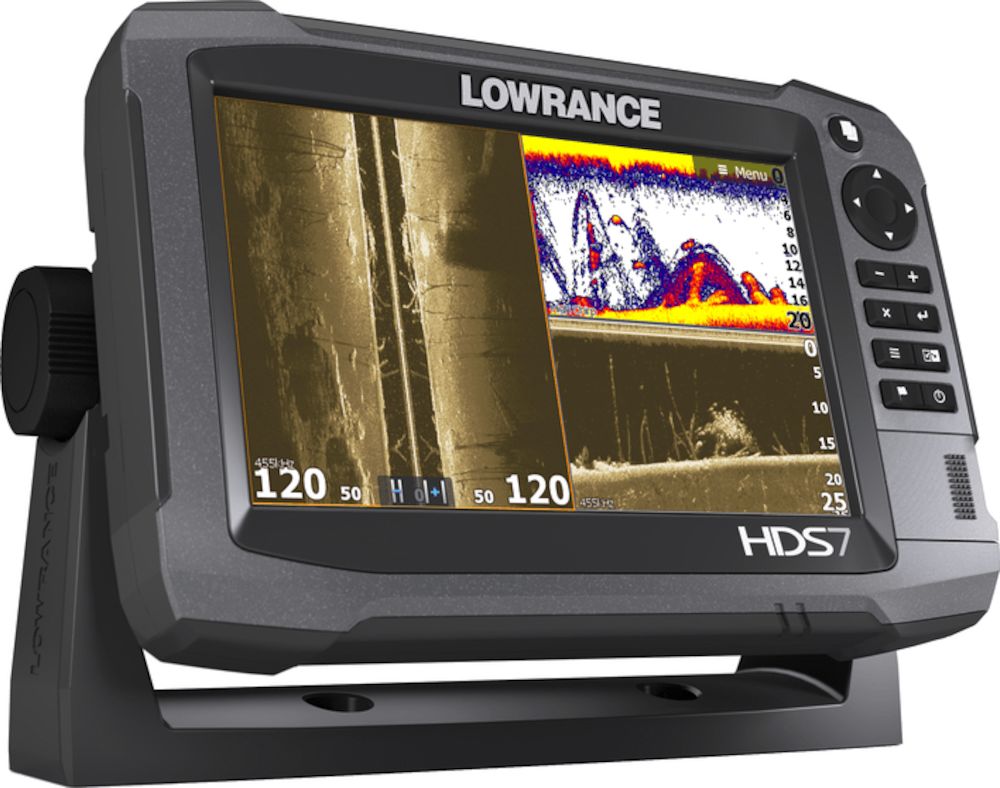

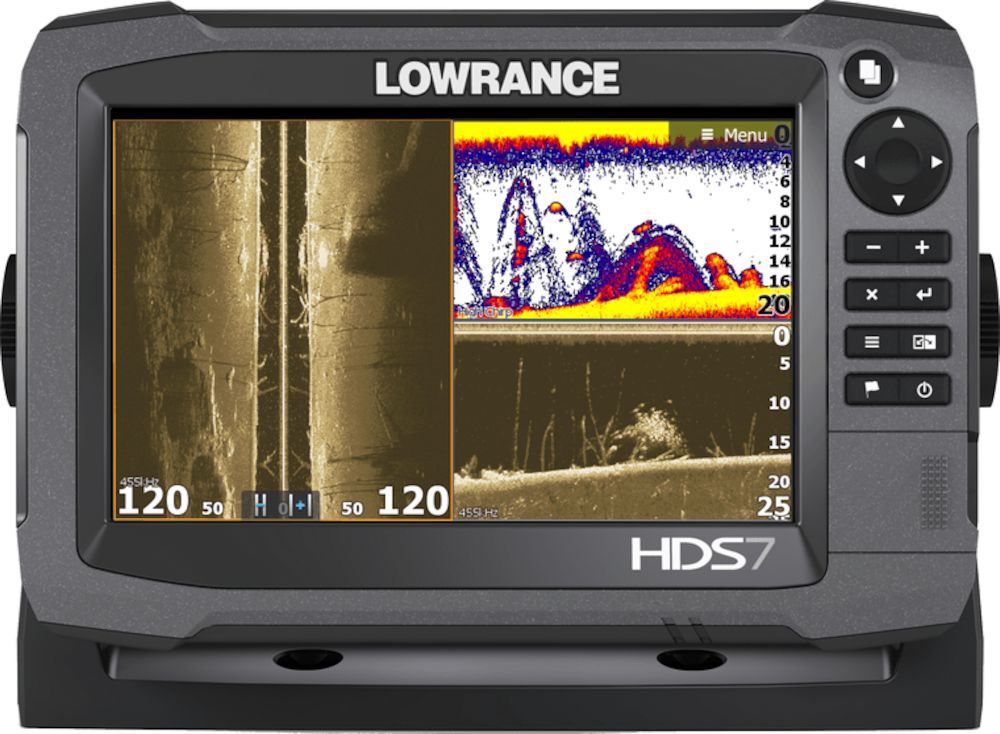

HDS-7 GEN3 ROW MID/HIGH/LSS

Specifications

Display

[ Missing text '/product/specs/ Display Backlight Color' for ' Polish ( Poland)']

Pure White LED

[ Missing text '/product/specs/ Display Resolution' for ' Polish ( Poland)']

800H x 480W

[ Missing text '/product/specs/ Display Screen Brightness' for ' Polish ( Poland)']

1200 Nits

[ Missing text '/product/specs/ Display Viewing Angles' for ' Polish ( Poland)']

80° top/bottom, 85° left/right

Connectivity

[ Missing text '/product/specs/ Connectivity0183sentence' for ' Polish ( Poland)']

TX / RX - GPS Receive GGA GLL GSA GSV VTG ZDA Transmit GGA GLL GSA GSV VTG ZDA GLC TX / RX - Navigation Receive RMC Transmit AAM APB BOD BWC BWR RMC RMB XTE XDR TX / RX - Sonar Receive DBT DPT MTW VLW VHM Transmit DBT DPT MTW VLW VHM TX / RX - Compass Receive HDG HDT HDM Transmit HDG TX / RX - Wind Receive MWV MWD Transmit MWV MWD TX / RX - AIS / DSC* Receive DSC DSE VDM *AIS sentences are not bridged to or from NMEA 2000.

[ Missing text '/product/specs/ Connectivity Bluetooth' for ' Polish ( Poland)']

Integrated

[ Missing text '/product/specs/ Connectivity Ethernet' for ' Polish ( Poland)']

1x 100 Mbit, 6 max MFD's on a network

[ Missing text '/product/specs/ Connectivity Pc Connectivity' for ' Polish ( Poland)']

None

[ Missing text '/product/specs/ Connectivity Video' for ' Polish ( Poland)']

Output: No Input: Composite video RCA - single channel via optional adaptor

[ Missing text '/product/specs/ External Storage' for ' Polish ( Poland)']

2 micro SD cards up to 32GB

[ Missing text '/product/specs/N2KPG Ns' for ' Polish ( Poland)']

Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP Voltage Transmit and Receive: 59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event Reply Transmit only 65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration

[ Missing text '/product/specs/NMEA2000 Connectivity' for ' Polish ( Poland)']

1x Micro-C

[ Missing text '/product/specs/productdepth' for ' Polish ( Poland)']

Internal 802.11b/g/n and Compatible with WiFi-1 Module

Cartography

[ Missing text '/product/specs/ Chart Supported' for ' Polish ( Poland)']

Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+)

Autopilot

[ Missing text '/product/specs/ Autopilot Manouevres Turn Patterns' for ' Polish ( Poland)']

Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S

[ Missing text '/product/specs/ Autopilot Steering Modes' for ' Polish ( Poland)']

Course, Heading, Waypoint, Power Steer

Approvals

[ Missing text '/product/specs/ Approvals Compliance' for ' Polish ( Poland)']

FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM

Electrical

[ Missing text '/product/specs/ Electrical Power Consumptionmax' for ' Polish ( Poland)']

1.3A @ 13VDC with backlight on full

[ Missing text '/product/specs/ Electrical Power Consumptionmin' for ' Polish ( Poland)']

1.3A @ 13VDC with backlight on full

[ Missing text '/product/specs/ Electrical Power Consumptiontypical' for ' Polish ( Poland)']

1.3A @ 13VDC with backlight on full

[ Missing text '/product/specs/ Electrical Recommended Fuse Rating' for ' Polish ( Poland)']

5A

[ Missing text '/product/specs/ Electrical Supply Voltage' for ' Polish ( Poland)']

12 v DC (10.8-17VDC)

Environment

[ Missing text '/product/specs/ Environment Humidity' for ' Polish ( Poland)']

60°C, 95% relative humidity (RH) for 18 hours

[ Missing text '/product/specs/ Environment Operating Temperature Range' for ' Polish ( Poland)']

5°F to 131°F (-15°C to 55°C )

[ Missing text '/product/specs/ Environment Shock Vibration' for ' Polish ( Poland)']

100,000 cycles of 20 G

[ Missing text '/product/specs/ Environment Storage Temperature Range' for ' Polish ( Poland)']

-40°F to 185°F (-40°C to 85°C )

[ Missing text '/product/specs/ Environment Waterproofrating' for ' Polish ( Poland)']

IPX7 with card door closed

GPS

[ Missing text '/product/specs/GPS Correction' for ' Polish ( Poland)']

DGPS, WAAS

[ Missing text '/product/specs/GPSGPS Receiver Channels' for ' Polish ( Poland)']

16

[ Missing text '/product/specs/GPS Position Accuracy' for ' Polish ( Poland)']

20m RMS

[ Missing text '/product/specs/GPS Timeto First Fix' for ' Polish ( Poland)']

30s

[ Missing text '/product/specs/GPS Updaterate' for ' Polish ( Poland)']

10 Hz

MFD

[ Missing text '/product/specs/ Cartography Included' for ' Polish ( Poland)']

Insight USA (AMER models), Navionics basemap (AMER and ROW models)

[ Missing text '/product/specs/ Internal Storage' for ' Polish ( Poland)']

4.9 GB Internal

[ Missing text '/product/specs/MFDAIS' for ' Polish ( Poland)']

AIS Chart and Radar overlay. Target vessel details.

[ Missing text '/product/specs/MFD Autopilot' for ' Polish ( Poland)']

Outboard Pilot and MotorGuide Xi5 Trolling Motor *requires Motorguide PinPoint Gateway

[ Missing text '/product/specs/MFD Digital Switching' for ' Polish ( Poland)']

Czone

[ Missing text '/product/specs/MFD Multimedia' for ' Polish ( Poland)']

SonicHub, SonicHub2, FusionLink products.

[ Missing text '/product/specs/ Sonar Compatibility' for ' Polish ( Poland)']

Integrated: CHIRP, Broadband, DownScan & StructureScan. Compatible with: SonarHub, StructureScan, StructureScan3D

[ Missing text '/product/specs/ Waypoints Routes Tracks' for ' Polish ( Poland)']

3000 Waypoints, 100 Routes and 100 Trails with up to 10,000 points per trail

[ Missing text '/product/specs/ Weather' for ' Polish ( Poland)']

SiriusXM via WM-3 (USA only)

Physical

[ Missing text '/product/specs/ Physical Compass Safe' for ' Polish ( Poland)']

12" (300mm)

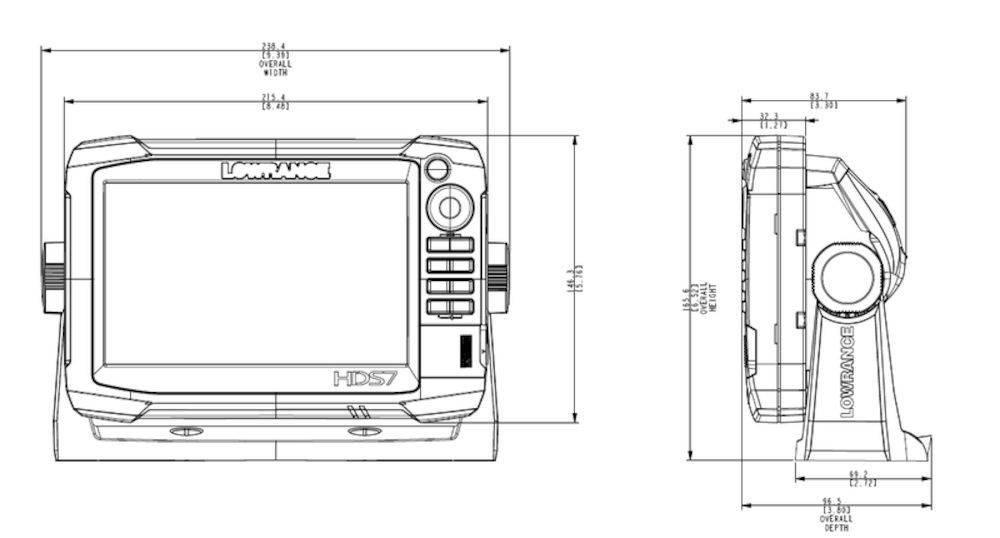

[ Missing text '/product/specs/ Physical Dimensions WHD' for ' Polish ( Poland)']

5.76in (146.3mm) x 8.48in (215.4mm) x 3.47in (88.2mm)

[ Missing text '/product/specs/ Physical Mounting Type' for ' Polish ( Poland)']

Gimbal Bracket or Dash Flush Mount

[ Missing text '/product/specs/ Physical Weight' for ' Polish ( Poland)']

3.04lb (1.38kg)

Other

[ Missing text '/product/specs/ Interface' for ' Polish ( Poland)']

Full Multi-touch touchscreen and Keypad; 8-way directional keypad; ZOOM +/-, EXIT,ENTER,MENU,SWAP PANEL,WPT,LIGHT/POWER

[ Missing text '/product/specs/ Languages' for ' Polish ( Poland)']

Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

[ Missing text '/product/specs/ Warranty Warranty Period' for ' Polish ( Poland)']

2 Year + part of the 5 year upgrade program
