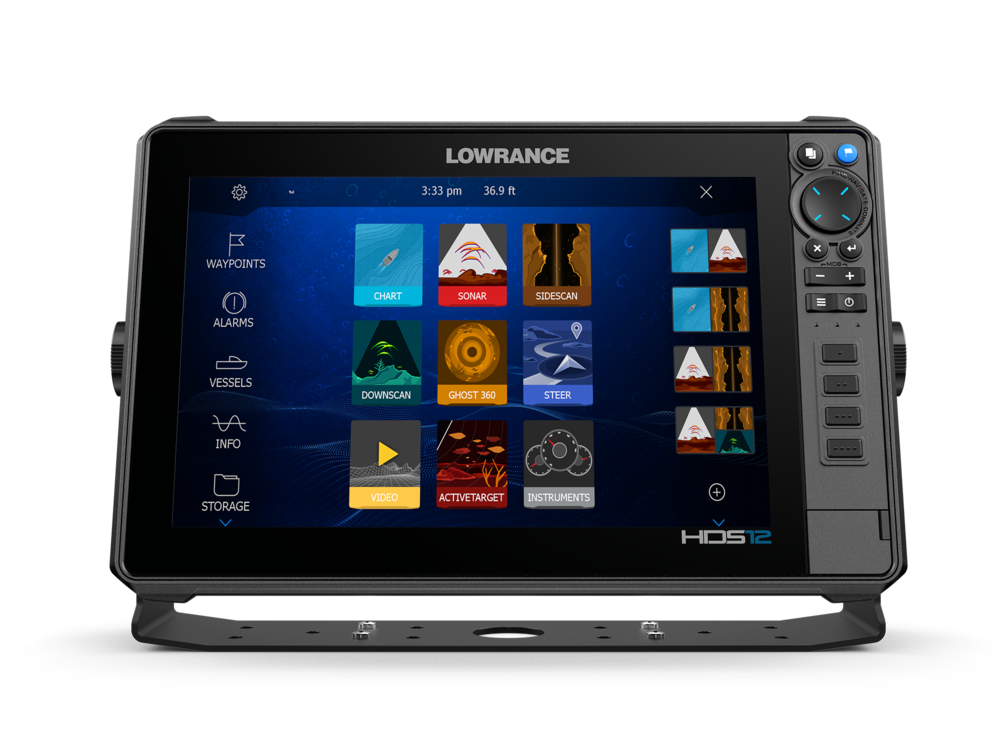

HDS PRO 12 with Active Imaging™ HD
SKU: 000-15989-001
000-15989-001
See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging™ HD. Quickly find fishing areas with the latest and most detailed C-MAP® charts and get full fishing system networking with expanded boat control from bow to stern.
New Lowrance sonar
See more and catch more with the new HDS® PRO, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD.
NEW
Active Imaging™ HD
Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.
FishReveal™
FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat.
*SideScan with FishReveal™ requires S3100 module and compatible transducer
NEW
Active Imaging™ HD
Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™.
FishReveal™
FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat.
*SideScan with FishReveal™ requires S3100 module and compatible transducer
NEW
ActiveTarget® 2 Live Sonar
ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.
Additional live sonar views
HDS® PRO also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
NEW
ActiveTarget® 2 Live Sonar
ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure.
Additional live sonar views
HDS® PRO also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
All the chart details – preloaded
Spend more time catching fish and less time finding them, thanks to the detail of C-MAP® inland and coastal charts built into HDS® PRO displays. Enhanced Embedded charts help you find ledges, drop-offs, and ditches – then they help you navigate there with precision.
All the chart details – preloaded
Spend more time catching fish and less time finding them, thanks to the detail of C-MAP® inland and coastal charts built into HDS® PRO displays. Enhanced Embedded charts help you find ledges, drop-offs, and ditches – then they help you navigate there with precision.
New chart overlay
HDS® PRO also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen.
New chart overlay
HDS® PRO also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen.
Ultimate clarity
The better your view, the better your fishing.
From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® PRO delivers a full range of meaningful underwater views that will take your fishing experience from good to great.
SolarMAX™ HD
The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water.
SolarMAX™ HD
The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses – a real difference maker on the water.
Complete bow-to-stern boat control
HDS® PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System.
The Ultimate Fishing System
With HDS® PRO at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options.
The Ultimate Fishing System
With HDS® PRO at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options.
Connectivity
Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
Built-in support
HDS® PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Ghost® Trolling Motor, Power-Pole® Anchors and more.
Built-in support
HDS® PRO offers support for the complete range of top fish-finding technologies – from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Ghost® Trolling Motor, Power-Pole® Anchors and more.
Connectivity
Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
More options
The expanded options and capabilities of HDS® PRO give you more ways to customize your boat to better fit your fishing needs.
Plug-and-play
Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® PRO can also be expanded to deliver additional views and features. With plug-and-play installation, expanding your fishing has never been easier.
FishReveal™ SideScan
Simply add an S3100 sonar module and compatible Active Imaging™ HD transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat.
Multiple live sonar views
Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar displays at the same time.
Plug-and-play
Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® PRO can also be expanded to deliver additional views and features. With plug-and-play installation, expanding your fishing has never been easier.
FishReveal™ SideScan
Simply add an S3100 sonar module and compatible Active Imaging™ HD transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat.
Multiple live sonar views
Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget® 2 Live Sonar displays at the same time.
Key Features
- SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
- New! High-definition up to 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- New! High-resolution ActiveTarget® 2 Live Sonar ready
- FishReveal™ with new SideScan view, as well as Downscan*
- Available in 9, 10, 12 and 16-inch display size
- Preloaded C-MAP® Enhanced charts for New Zealand and Australia
- Real-time mapping available with C-MAP® Genesis Live.
- Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
- Large programmable keys for 10, 12 and 16-inch sizes
- Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
- NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
- Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
*SidescanFishReveal requires S3100 module and a compatible transducer
Related Items
Specifications
- Display
- Backlight Color
- Pure White LED
- Display Resolution
- 1280 x 800
- Screen Brightness
- >1200 Nits
- Viewing Angles
- 80° top/bottom, 80° left/right
- Connectivity
- Bluetooth
- Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet Ports
- 2 x 100 Mbit, 6 max MFD's on a network
- Connectivity Wi Fi
- Internal 802.11b/g/n and Compatible with WiFi-1 Module
- N2K PG Ns
- Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- NMEA 0183 Sentences supported
- TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
- NMEA 2000 Connectivity
- 1x Micro-C
- PC Connectivity
- None
- SD Card Storage
- 2 micro SD cards up to 32GB
- Video
- Output: NoInput: Composite video RCA - singlechannel via optional adaptor
- Cartography
- Charts supported
- C-MAP RevealC-MAP DiscoverC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
- Autopilot
- Manouevres Turn Patterns
- CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S
- Steering Modes
- CourseHeadingWaypointPower Steer
- Approvals
- Approvals Compliance
- FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Electrical
- Power Consumption max
- 3.6A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min
- 2.3A @ 13VDC with Full Backlight, Sonar on
- Power Consumption typical
- 2.3A @ 13VDC withwith Full Backlight, Sonar on
- Recommended Fuse Rating
- 5A
- Supply Voltage
- 12 v DC (10.8-17VDC)
- Environment
- Humidity
- IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating Temperature Range
- 5°F to 131°F (-15°C to 55°C )
- Shock Vibration
- 100,000 cycles of 20 G
- Storage Temperature Range
- 4°F to 140°F (-20°C to 60°C )
- Waterproofrating
- IPX7 with card door closed
- GPS
- Correction
- DGPS, WAAS
- GPS Receiver Channels
- 16
- Position Accuracy
- 20m RMS
- Time to First Fix
- 30s
- Update rate
- 10 Hz
- MFD
- AIS
- AIS Chart and Radar overlay. Target vessel details.
- Autopilot
- Outboard PilotNAC-1NAC-2Ghost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
- Cartography included
- C-MAP AUS/NZ Enhanced Basemap (AUS/NZ models)C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)
- Digital Switching
- CzoneNaviop
- GPS
- 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Internal Storage
- 8.0 GB Internal
- Multimedia
- SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
- Sonar Compatibility
- Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanActive Imaging HD DownScanActive Imaging HD SideScanCompatible with:ActiveTargetActiveTarget2S3100 SonarHubStructureScanStructureScanHDStructureScan3DLiveSight (requires PSI-1 module)
- Waypoints, Routes, Tracks
- 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
- Weather
- SiriusXM via WM-3 (USA only)SiriusXM via WM-4 (USA only)
- Physical
- Compass Safe
- 65 cm (2.1 ft)
- Dimensions W x H x D
- 13.68" (347.5 mm) x 9.00" (225.5 mm) x 3.26" (82.9 mm)
- Mounting Type
- Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
- Weight
- 5.76 lb (2.61 kg)
- Other
- Interface
- Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light4 - User Programmable Quick Access Keys
- Languages
- Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- Warranty Period
- 2 Year + 3 additional years ofupgrade optionsTotaling 5 years
